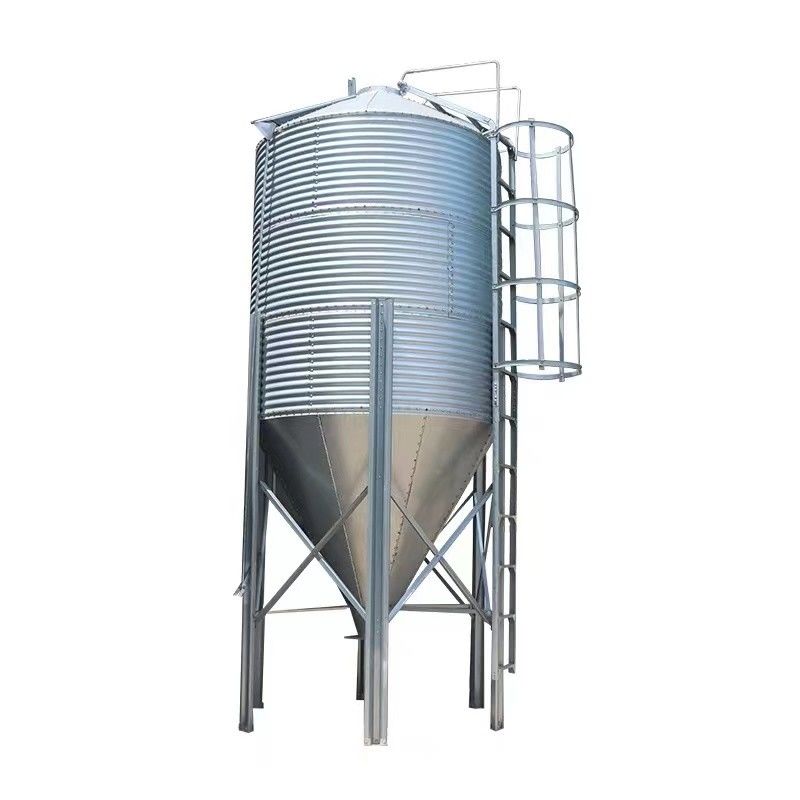

Hot Galvanized Steel Animal Feed Silo 3-30 Ton Feed Grain Bin
30 Ton Animal Feed Silo
,Hot Galvanized Steel Animal Feed Silo
,30 Ton Feed Grain Bin
PRODUCT DESCRIPTION
Animal Farming Automatic Feeding System Feed Silo In Animal House
Animal farming automatic feeding system feed silo is widely used in modern animal farms. It can feed quantitatively and automatically according to different stages of aniaml's growth, which saves feed, labor and improve farming productivity. Using automatic feeding system can effectively prevent personnel from entering the animal house, cut off the transmission route of the disease and ensure biological safety.
| Animal Farming Automatic Feeding System | Feed Silo Specification |
| Feed Silo | Hot galvanized steel |
|
Weighing system |
Alloy steel / stainless steel |
| Drive engine | Horizontal power box / vertical power box |
| Corner |
Shell: Nylon / aluminum alloy / stainless steel, inner wheel: Cast Steel |
| Chain feeding | Reinforced chain |
| Auger feeding | Auger imported from SA/auger made in China |
| Dispenser | 8L/6L |
| Joint | Paddle type / wire type |
| Customizable | |
Automatic feeding system feed silo specification
Different sizes silo are available for matching different scales animal farming needs.
| Tonnage (T) | Volume (m³) | Diameter(mm) | Height(mm) | Layer | Leg | Weight (kg) |
| 1.7 | 2.7 | Φ1530 | 3420 | 1 | 4 | 238 |
| 2.7 | 4.1 | Φ1530 | 4236 | 2 | 4 | 282 |
| 3.6 | 6.4 | Φ2140 | 4325 | 1 | 4 | 370 |
| 5.4 | 9.3 | Φ2140 | 5141 | 2 | 4 | 434 |
| 7.3 | 12.2 | Φ2140 | 5957 | 3 | 4 | 495 |
| 11.5 | 15.8 | Φ2750 | 5336 | 2 | 6 | 637 |
| 13.8 | 20.6 | Φ2750 | 6152 | 3 | 6 | 700 |
| 15.5 | 23.11 | Φ3200 | 5809 | 2 | 6 | 777 |
| 17.1 | 25.5 | Φ2750 | 6968 | 4 | 6 | 921 |
| 22.5 | 29.63 | Φ3200 | 6622 | 3 | 6 | 950 |
| 24.05 | 36.15 | Φ3200 | 7435 | 3 | 6 | 1090 |
| 27 | 40.6 | Φ3669 | 7216 | 3 | 8 | 1221 |
| 32 | 49.1 | Φ3669 | 8032 | 4 | 8 | 1360 |
| Customizable | ||||||
ADVANTAGES
- hot galvanized steel material, ensures good rust and corrosion resistance
- Good heat resistance, thermal insulation, moisture-proof and mildew-proof
- 275g/sqm zinc-coated thickness, provides silo long life span
- Easy to install, conveneint to transport, cost-saving on delivery
Animal Farming Automatic Feeding System Feed Silo Details
Project case
Farrowing House Automatic Feeding System
Animal Farming Automatic Feeding System Feed Silo Application
Company Information
Purple Horn company is specializing in animal farming equipment production and selling. We are working on fulfilling the individual plant requirements of our customers every day. 130 employees in 8 departments from our factory and office take care that things run smoothly.
● 11000 square meters Production site
● 1000 tons/month Production output
● Over 110 sets modern production equipment
● Undertake large, medium and super large farm projects
Animal Farming Automatic Feeding System Feed Silo Production
Purple Horn Animal Farming Service
We provide professional one-stop purchasing scheme of all different kinds of animal farm equipment, from penning equipment, feeding system, drinking system, farm accessory, etc.
Our service is available 24 hours to customers during the week as well as on weekends. This timeliness is very important for our clients because it is related with live animals.
Our modern stable construction technology systems from our in-house production take into account the special aspects of all production cycles so that your animals can develop magnificently.
